1915 Jeffery-Quad Armored Car No. 1


Specifications

Country of Origin/Used by: USA
First Produced/Service Dates: 1915
Manufactured by: Chassis/Suspension/Engine: Thomas B. Jeffery Company (Later Nash Motors); Hull: Rock Island Arsenal.
Crew: 4
Armament: (4) .30 cal Benet-Mercier machine rifles and additional (2) in reserve.
Engine: 4 Cylinder
Miscellaneous Info: At least one Jeffery [along with a White Armored Car which were under test, and the Armored Cars from the New York National Guard (Mack, Locomobile , and another White] was used in the Punitive Expedition against Pancho Villa in 1916.
Data Sheet Available: Jeffery-Quad Armored Car No. 1 by Dave Haugh

Photos

Reference Source/Provider

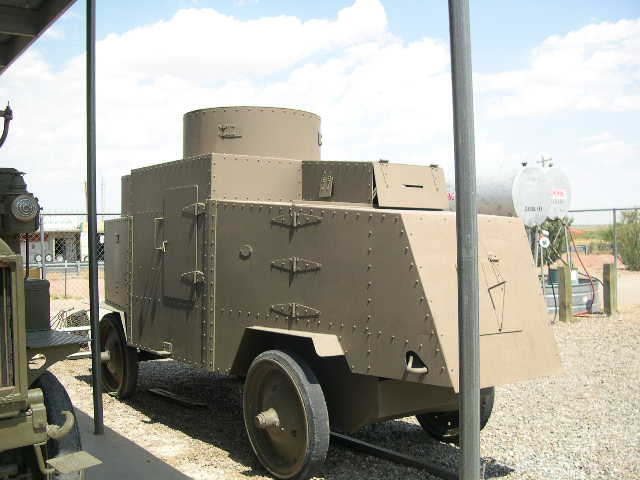

1915 Jeffery-Quad Armored Car No. 1 Photos (Taken at Pancho Villa State Park - NM) Jeff Larkin - Silver City, New Mexico USA
Jeffery-Quad Armored Car No. 1 Photos Collected by Dave Haugh - Content Editor
Jeffery-Quad Armored Car No. 1 Photos U.S. National Archives
  Line drawing of the Jeffery Quad Chassis Jeff Larkin

References Available

Online

Reference Source/Provider


Printed

Reference Author
A Photo History of Armoured Cars In Two World Wars George Forty
Armored Car- A History of American Wheeled Combat Vehicles R.J. Hunnicutt
  "Armoured Cars of New York" (February 2020 Issue of Classic Military Vehicle Magazine) Tim Gosling
Encyclopedia of Armoured Cars Duncan Crow and Robert J. Icks
"On All Fours" (October 2016 Issue of Classic Military Vehicle Magazine) David Fletcher
U.S. Armoured Cars - AFV Weapons Profile #40 Robert J. Icks
U.S. Military Wheeled Vehicles Fred W. Crismon

Hobby Modeling

Kits and Accessories

Model Kit Manufacturer Scale Other Information


Model Photos

Reference Source/Provider
1/24 Scratch Built Jeffery-Quad 1915 Armored Car Tad Dowdy - Grapevine, Texas USA
