Fiat-Ansaldo 611 Armored Car

Fiat 611B


Specifications

Country of Origin/Used by: Italy
First Produced/Service Dates: 1933
Manufactured by: Chassis/Automotive Components: Fiat (Fabbrica Italiana Automobili di Torino); Design/Assembly: Ansaldo AB
Crew: 4-5
Armament: A-Turret: (2) 6.5mm Machine Guns (Breda 5C) ; Rear Hull: (1) 6.5mm MG
B- Turret: (1) 37mm Cannon (Vickers-Terni 37/40 Model 30) and (1) 6.5mm MG (Rear); Rear-Hull: (1) 6.5mm MG
Engine: 4-Cylinder Gasoline (Fiat 122B)
Miscellaneous Info: The Fiat-Ansaldo 611 Armored Car was originally developed in the early 1930's for use by the Public Security Agents Corps and Metropolitan Police.  The cars was built using the chassis and automotive components of the Fiat 611C (Coloniale) 6x4 3-Ton Truck with a newly designed armored hull. The 611 was built in two (2) variants: The 611 A, which was armed only with machine guns and the B, which mounted a 37mm Cannon and two machine guns. Approximately 46-48 were built and served first with Italian police units and then with the Royal Army Tank Regiment in East Africa.  By all accounts the 611's performance was sub-par as they were underpowered and heavy causing it to be cumbersome to operate.  There are reports the 611's were used during World War Two in Libya for conducting secondary patrols, although apparently not seeing any combat. Ultimately, both captured vehicles and the remaining Italian stock were scrapped very soon afterwards.
Data Sheet Available:   None Available

Photos

Reference Source/Provider

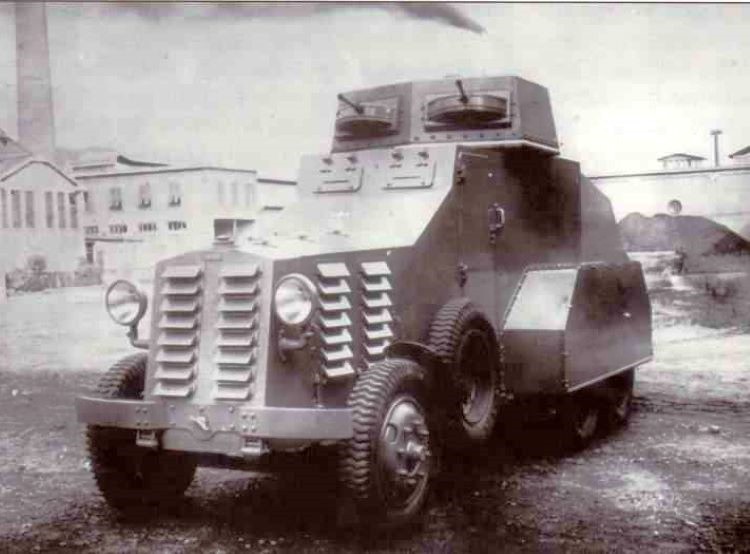

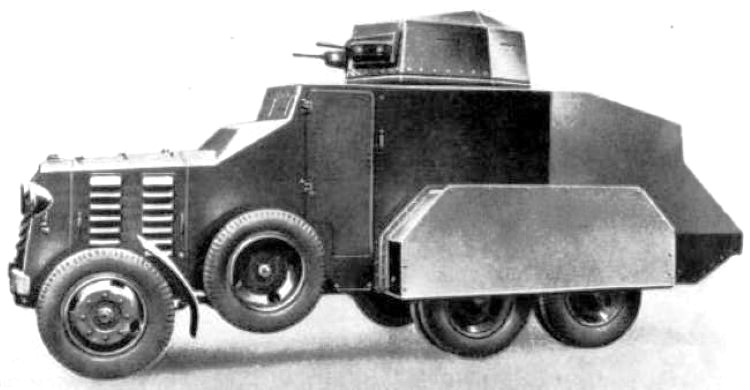

    Fiat-Ansaldo 611A Prototype Armored Car Regio-Esercito via Wikipedia Commons

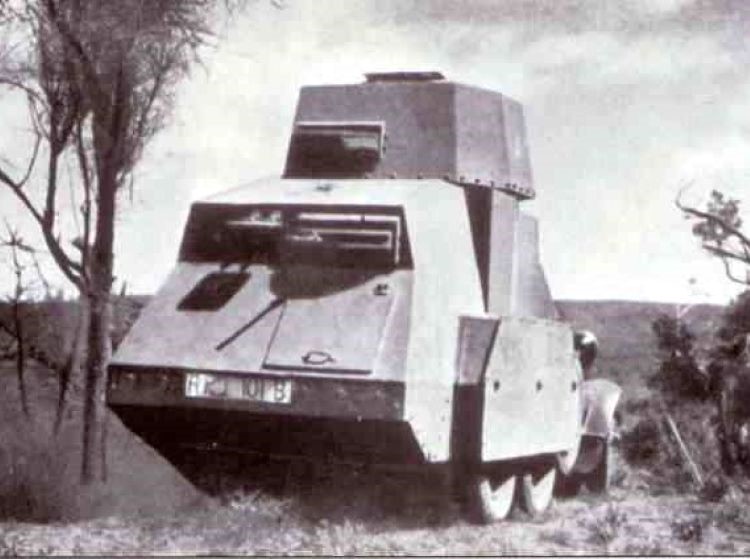

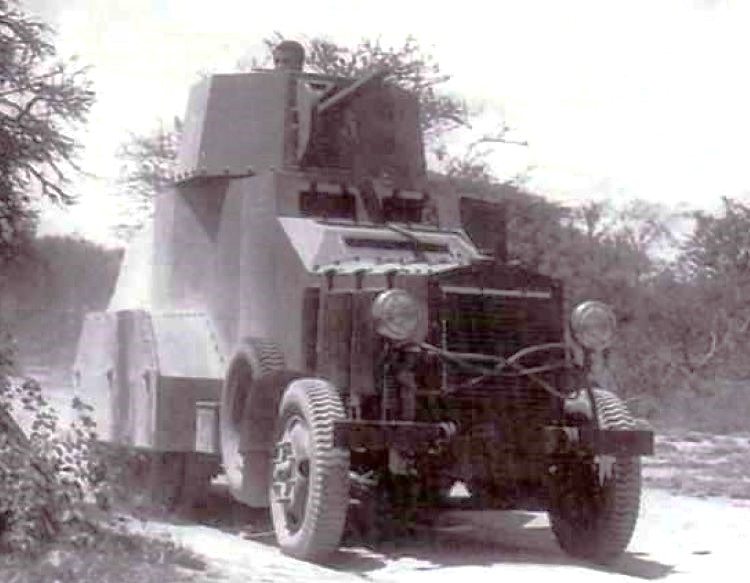

    Fiat-Ansaldo 611B Armored Car Regio-Esercito via Wikipedia Commons

References Available

Online

Reference Source/Provider
Fiat-Ansaldo 611 Armored Car Information & Photos The Quartermaster Section
Fiat-Ansaldo 611 Armored Car Information & Photos Tank-Encyclopedia Archives
Fiat-Ansaldo 611 Armored Car Line Drawing The Blueprints.com

Printed

Reference Author
A Century of Italian Armored Cars (Roadrunner) Nicola Pignato
A Photo History of Armoured Cars In Two World Wars George Forty
Encyclopedia of Armoured Cars Duncan Crow and Robert J. Icks
First Italian Armoured Cars, The: Lancia 1Z, Fiat 611 and Others (Soldiershop) Luca Stefano Cristini
Italian Armoured & Reconnaissance Cars: 1911-45 (Osprey Publishing) Filippo Cappellano & Pier Paolo Battistelli
Italian Tanks and Combat Vehicles of World War 2

Book Review by Patrick Keenan - Editor
Ralph Riccio
