M1132/M1257 Stryker
Engineer Squad Vehicle
M1132 Fitted with Pearson Surface Mine Plow
Specifications
| Country of Origin/Used by: | USA |
| First Produced/Service Dates: | 2003? |
| Crew: | 2+9 |
| Armament: | M151 "Protector" Remote Weapon Station which can contain (1) .50cal M2HB Heavy Machine Gun, 40mm MK19 Automatic Grenade Launcher or M240B 7.62mm MG. |
| Miscellaneous Info: | The M1132 Engineer
Squad Vehicle (ESV) is the Stryker Series variant designed to be used by
engineering units to provide support for U.S.forces. Mine clearing devices that can
be mounted on the ESV include the Angled Mine Plow (AMP), Light-Weight
Mine Roller (LWMR), Surface Mine Plow (SMP) and Straight Obstacle Blade
(SOB). Over its lifespan, the ESV has been upgraded with improvements to
armor and automotive components a number of times. The ESV is one of
the vehicles that has been fitted with the new Double-V Hull (DVH) to
protect against Improvised Explosive Devices (IED's). The vehicles
fitted with the DVH are referred to as the M1257 ESVV and the vehicles
with added enhancements as outlined in the Engineering Proposal Change
(ECP), the M1257 ESVV-A1. To view the specifications and references common to ALL variants, please refer to the Stryker Interim Vehicle (IAV) Series Index. |
| Data Sheet Available: |
None Available |
Photos
| Reference | Source/Provider |
.jpg)

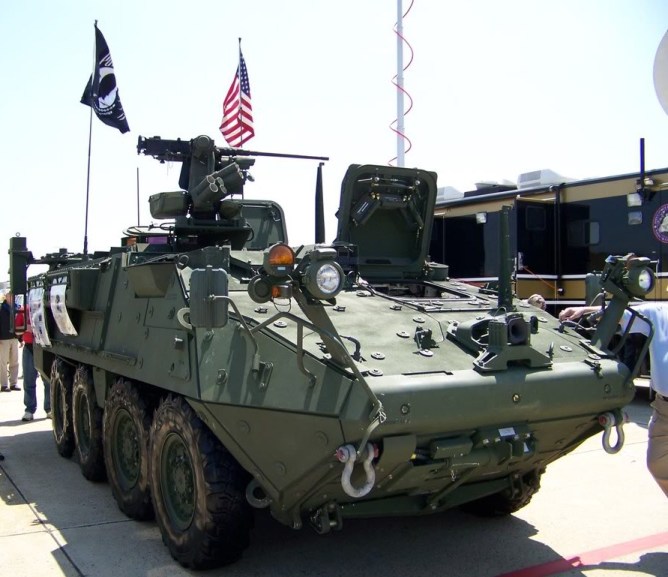

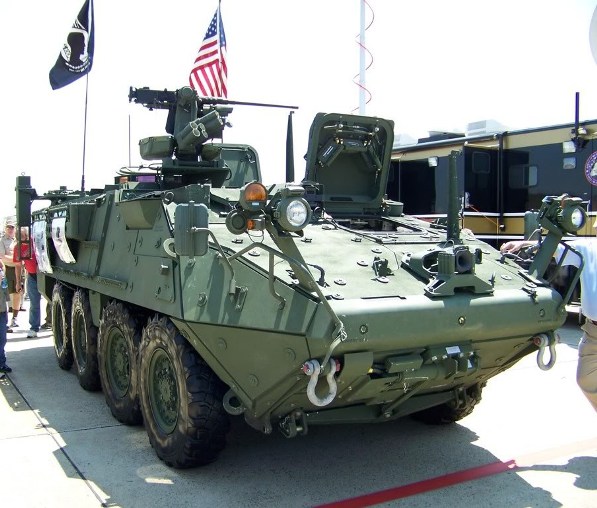

.jpg) M1132 Stryker
ESV
Photos |
Neil Baumgardner - Arlington, Virginia USA |
|
M1132 Stryker ESV Photo (Above) |
General Dynamics Land Systems |
References Available
Online
| Reference | Source/Provider |
| M1132 Stryker ESV Information & Photos | General Dynamics Land Systems |
| M1132 Stryker ESV Information & Photos | Global Security.org |
| M1132 Stryker ESV Photos (via Han-Hermann Buhling) | Prime Portal |
| M1132 Stryker ESV Photos | Tank-Masters.DE |
| M1132 Stryker ESV with Light-Weight Mine Roller Photos | Tank-Masters.DE |
Printed
| Reference | Author |
| Stryker In Detail - Part 1 (Revised and Extended) - (Wings and Wheels Publications #17) | Ralph Zwilling |
Hobby Modeling
Kits and Accessories
| Model Kit | Manufacturer | Scale | Other Information |
| M1132 Stryker
Engineer Squad Vehicle Model
Kit (35132) "Sprue Shots" courtesy of AFV Club |
 AFV Club |
1/35 | Injection molded plastic kit. |
| M1132 Stryker Engineer Squad Vehicle Model Kit (1574) | Trumpeter | 1/35 | Injection molded plastic kit. |
| Aftermarket Set | Manufacturer | Scale | Other Information |
| For products useable with all variants, see our Stryker IAV Series Index | |||
| M1132 Stryker MEV Chain & Spring Hanger for Mine Plow (AG35024) |
AFV Club |
1/35 | Injection molded plastic kit. |
| M1132 ESV Stryker Detail Set (E35-223) | ET Models | 1/35 | For AFV Club Model Kits; Photo Etched Brass |
Model Photos
| Reference | Source/Provider |
For More Information, go to our Stryker IAV Series Index
