2S23 Nona-SVK

Self-Propelled Gun/Mortar System

Specifications

Country of Origin/Used by:	Russia, Ukraine & Venezuela
First Produced/Service Dates:	1991 (Entered Service)
Manufactured by:	Motovilkikha Plants Corporation (Prime Contractor)
Crew:	4
Armament:	Turret: (1) 120mm Gun/Mortar (2A60); Anti-Aircraft Defense: (1) 7.62mm Machine Gun (PKTM)
Engine:	8-Cylinder Diesel (Kamaz-7403)
Miscellaneous Info:	The 2S23 Nona-SVK Self-Propelled Gun/Mortar System was designed to provide Soviet/Russian Ground Forces with mobile artillery support.  The vehicle is based upon the BTR-80 APC hull with some modifications including the elimination of some of the roof hatches, vision and firing ports and modified side hatches. It uses the same dual-purpose breech-loaded gun as the towed 2B16 Nona-K and tracked 2S9 Nona-S weapon systems. Although it can perform direct-fire missions, it is rarely utilized in that way The name "Nona" is a Russian acronym meaning "Newest Ordnance of Ground Artillery". Approximately 60 were built over a number of years, with 18 being sold to Venezuela.  It is not clear if the Venezuelan vehicles were part of the 60 noted as built or in addition to them.  Also, one (1) of the production vehicles was left in Ukraine after the break-up of the Soviet Union and a few were captured during the war with Russia.  There is one variant of the Nona-SVK; One vehicle was modified into a Special Fire-Fighting vehicle by the removal of the gun with a water-cannon replacing it.
Data Sheet Available:	None Available

Photos

Reference	Source/Provider

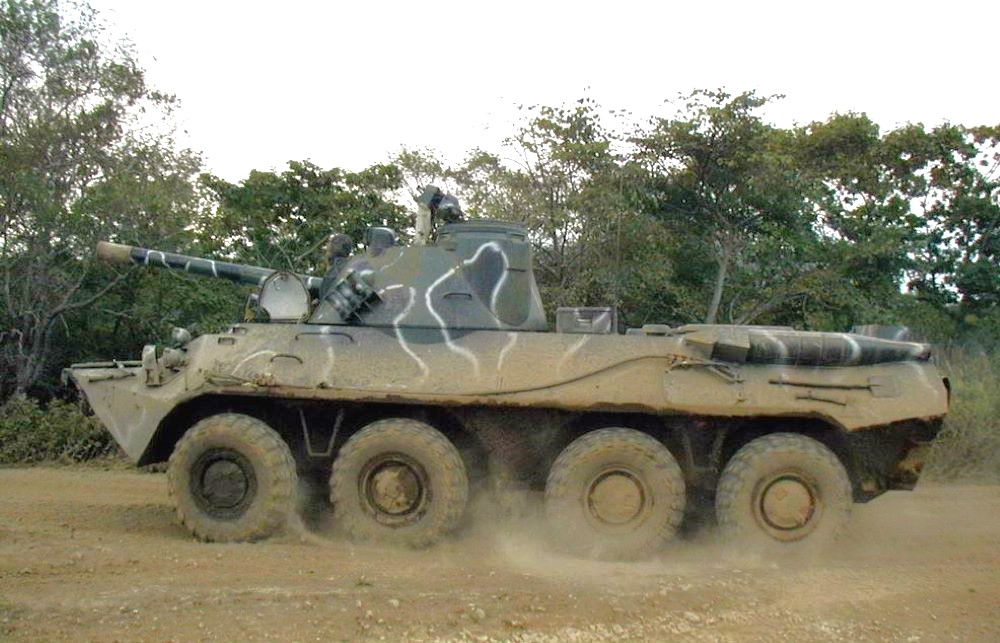

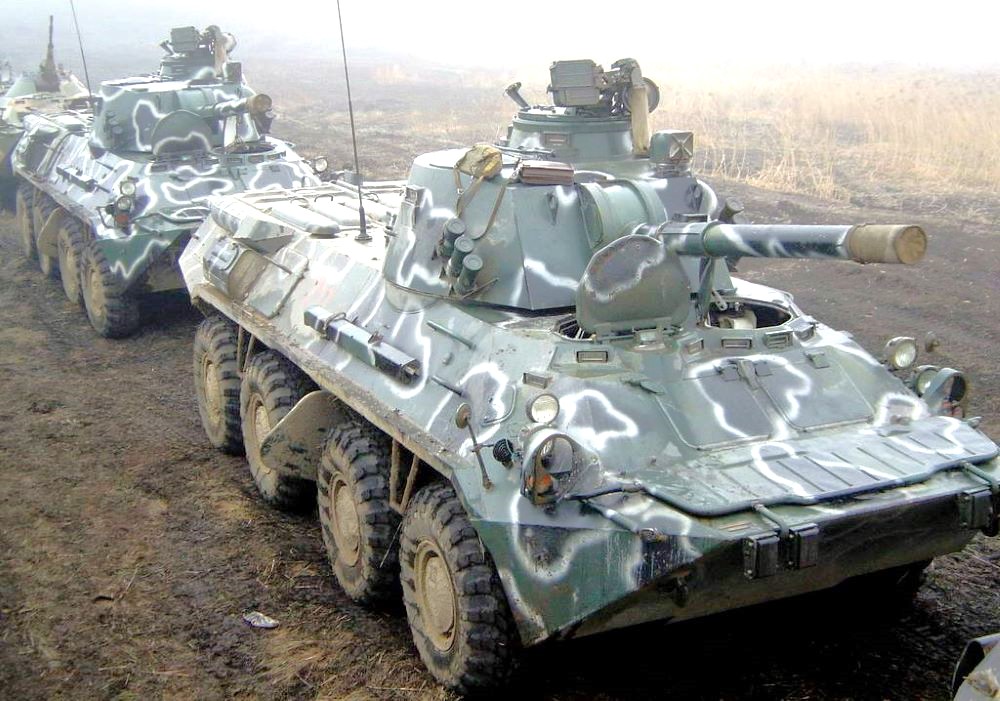

2S23 Nona-SVK Self-Propelled Gun/Mortar Photos	The David Haugh Collection

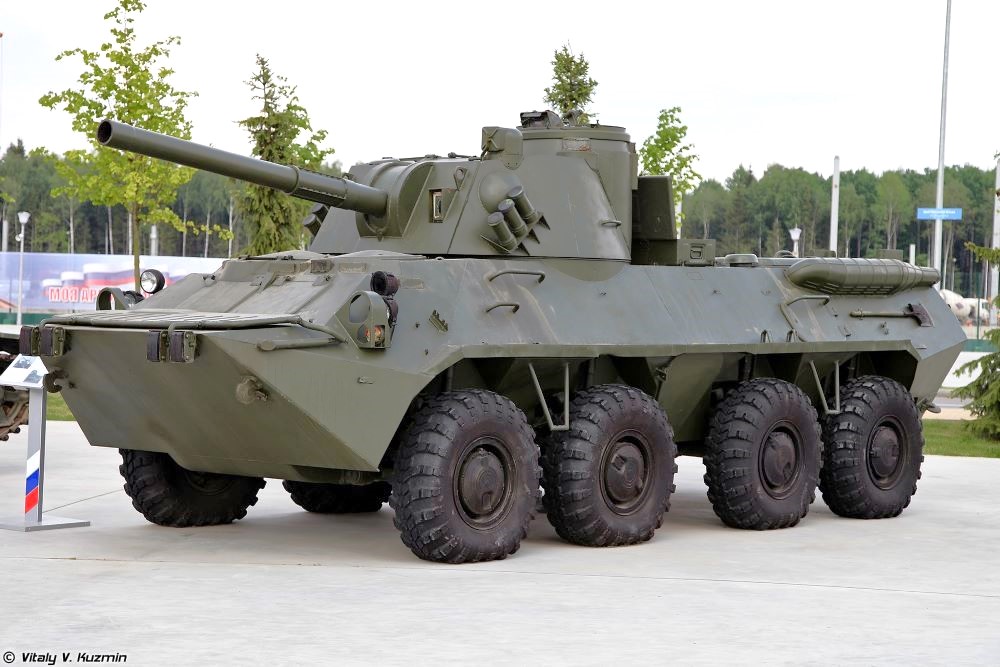

2S23 Nona-SVK Self-Propelled Gun/Mortar Photos	Vitaly Kuzmin - Moscow, Russia

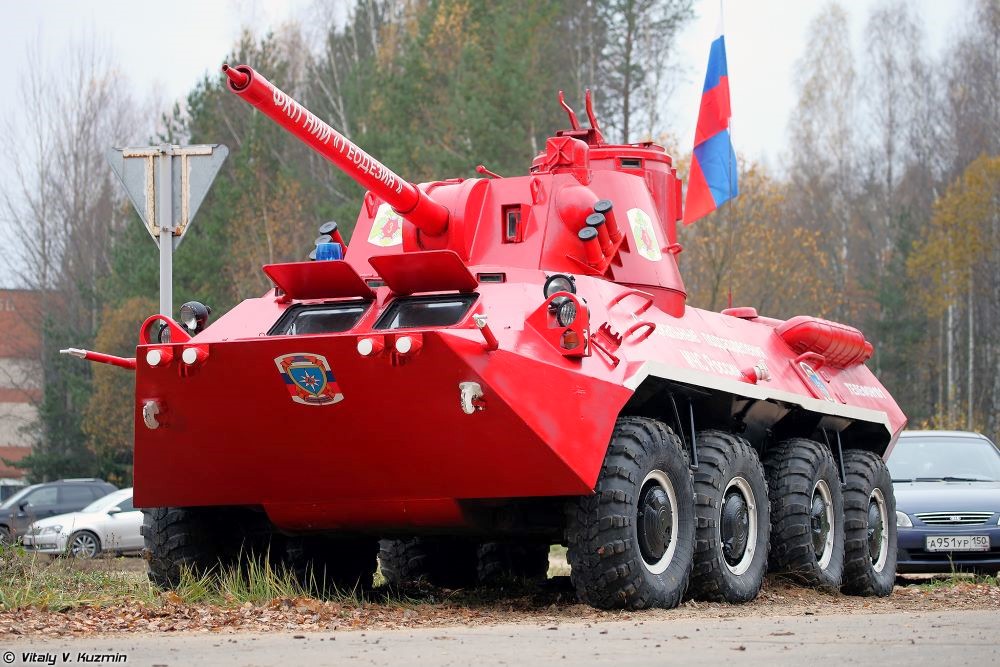

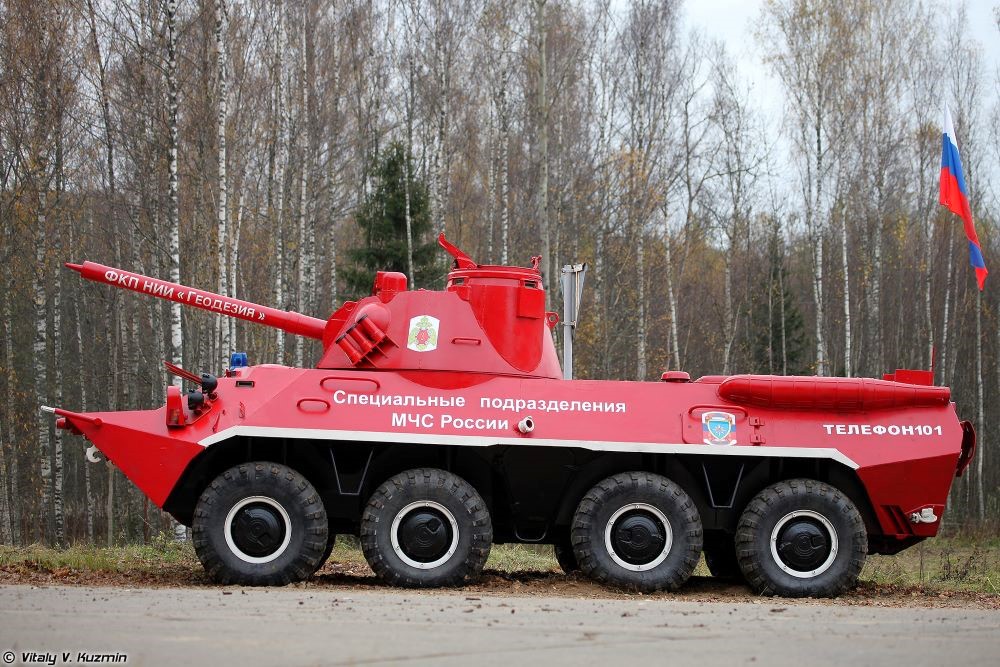

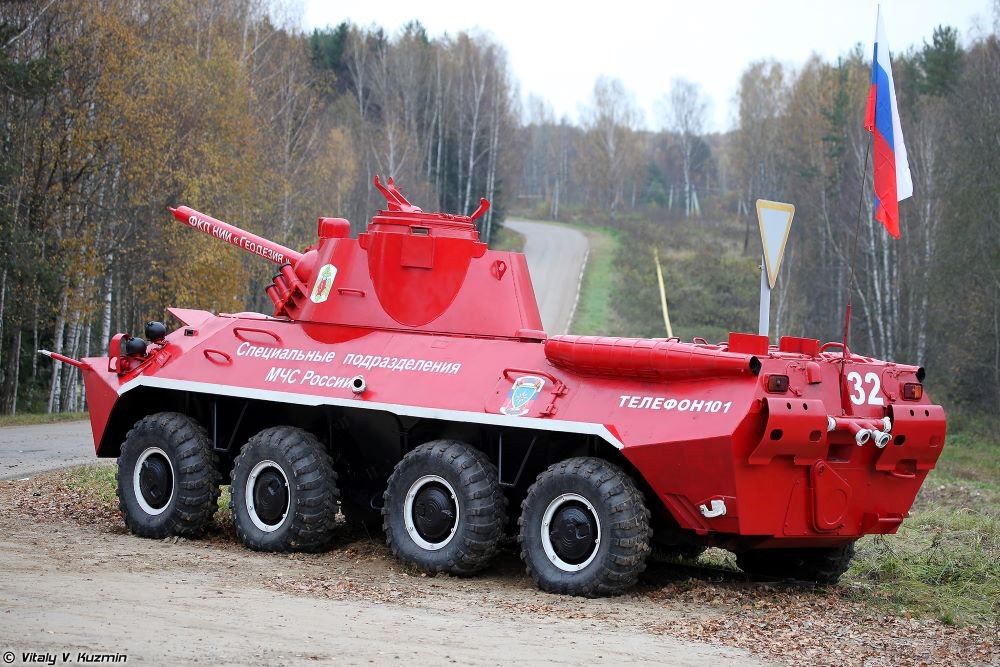

2S23 Nona-SVK Special Firefighting Vehicle Photos	Vitaly Kuzmin

References Available

Online

Printed

Hobby Modeling

For a Full List of Model Kits and Accessories related to this 2S23 Nona, you can check out Scalemates.

Model Photos
