M1220 Caiman 6x6

Multi-Role Protected Vehicle


Country of Origin/Used by: USA
First Produced/Service Dates: 2007
Manufactured by: BAE Systems (was Stewart & Stevenson Services)
Crew: Category 1 Vehicles = 3+4
Category 2 Vehicles = 3+8
Armament: Can mount either a protected weapons turret or Remote Weapon System (RWS) carrying (1) of the following weapons: 12.7mm Heavy Machine Gun, 7.62mm MG, 5.56mm MG or 40mm Automatic Grenade Launcher.
Engine: 6-Cylinder Turbo Diesel
Miscellaneous Info:

Fitted with a Low Signature Armored Cab (LSAC) and other exterior armor, the Caiman 6x6 Multi-Role Protected Vehicle (MRPV) is based upon the 5 ton MTV chassis of the Family of Medium Tactical Vehicles (FMTV)., Also developed and built by Stewart & Stevenson Services, it contains a large percentage of shared components with the FMTV trucks, which is a distinct advantage for servicing and supplying the vehicle fleet. The Caiman 6x6 is also closely related to the smaller Caiman "Light" 4x4 vehicle.


Although this Caiman version is a 6x6 vehicle, a vast majority of them are considered Category 1 Mine Resistant Ambush Protected (MRAP) vehicles based upon their 4-passenger rear-seating configuration.  However, there are a very few 6x6 Caiman MRPV's that are fitted with rear seating which can accommodate 8 passengers, and are thusly considered Category 2 MRAP's.  Also, there is one specialized combat variant of this vehicle series: the Caiman Company Command Post, which provides Company Commanders with expanded capabilities previously available only to higher levels of command. Also, a Caiman Surrogate Vehicle was developed to mimic the vehicle's performance during training, yet keeping combat vehicles free for operations.  The surrogate vehicle was built using the 5-ton M939A2 Truck.


Very soon after the Caiman MRPV went into action, it was quickly determined that they needed additional armor protection to defeat enemy IED attacks; most notably explosively formed penetrators.  They were then fitted with new company designed passive applique' armor packages. To differentiate the uparmored vehicles from the originals, they were designated as the M1230 Caiman Tactical Vehicle System, also referred to as Caiman "Plus" or "Mama Bear" vehicles.

Data Sheet Available:   None Available


Reference Source/Provider

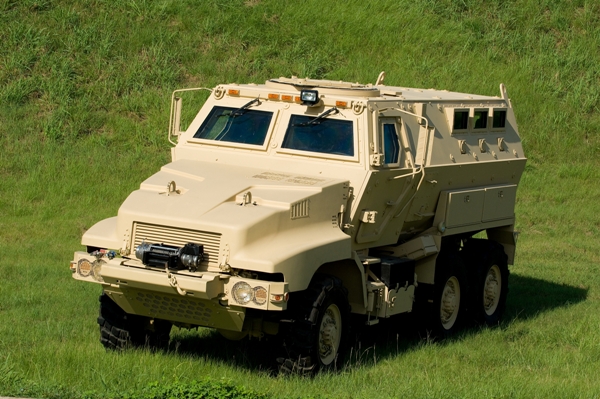

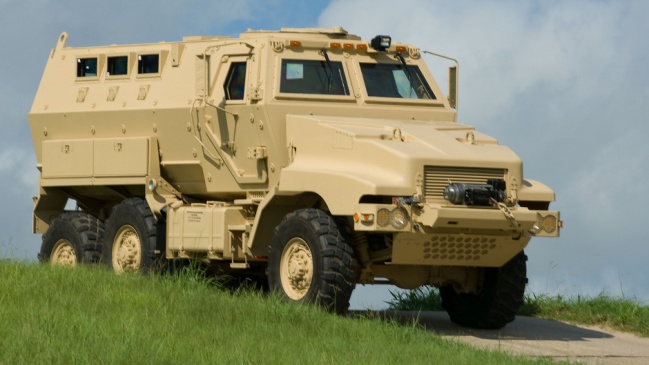

    M1220 Caiman 6x6 MRPV Photos BAE Systems
M1220 Caiman 6x6 MRPV Photos Paul Cote' - AMPS Anchorage, AK USA

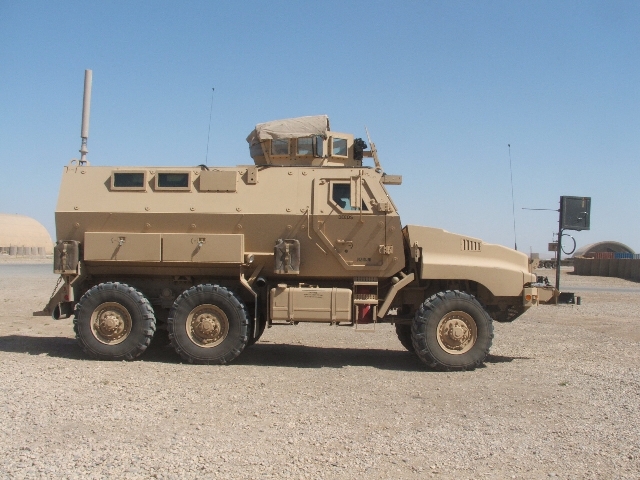

M1220 Caiman 6x6 MRPV Photo Robert Skipper (See Below)
      M1220 Caiman 6x6 MRPV Photos U.S. Army
M1220 Caiman 6x6 MRPV Photos U.S. Department of Defense
  Caiman 6x6 Company Command Post Photo U.S. Army
 Caiman Surrogate Vehicle Photos (Taken at the Russell Military Museum - Zion, Illinois USA) Patrick Keenan- Editor
Mine Resistant Ambush Protected Vehicle Slideshow Presentation (2011) US Department of Defense's Joint Program Office-MRAP via Dave Haugh - Content Editor

References Available


Reference Source/Provider
Caiman 6x6 Vehicle Family Information and Photos Global Security.Com
M1220 Caiman 6x6 MRPV Information and Photos Army Guide.Com
M1220 Caiman 6x6 MRPV Information and Photos Army Recognition.Com
M1220 Caiman 6x6 MRPV Information and Photos Military Today.Com


Reference Author
MRAP: Modern U.S. Army Mine Resistant Ambush Protected Vehicles (Tankograd Publishing) Carl Schulze
"MRAP Pt 1" (September 2008 Issue of Military Machines International Magazine) Shaun Connors
"MRAP Pt 2" (October 2008 Issue of Military Machines International Magazine) Shaun Connors
MRAP Walkaround Photo Reference Files: Part 2 Robert Skipper (Available directly from author via e-mail)

U.S. Army and Marine Corps MRAP's (Osprey Publishing)

Mike Guardia

U.S. MRAPís: In Action (Squadron-Signal Publications)

John Adams-Graf
