FV 701 Ferret Mark 1 Scout Car Series



Ferret Mark 1/1


Specifications

Country of Origin/Used by: Great Britain and many others including including Australia, Canada, France and the United Nations.
First Produced/Service Dates: Mark 1: 1952
Mark 1/1: 1958
Mark 1/2: 1961
Manufactured by: The Daimler Company, Ltd.
Crew: 2
Armament: Main: (1) .303 cal/7.62mm BREN Light Machine Gun, or .30 cal Browning LMG or 7.62mm GPMG (Depending on timeframe)
Engine: 6 Cylinder Gasoline (Rolls-Royce B60 Mk 6A)
Miscellaneous Info:

The Ferret Series of Scout Cars was developed soon after World War Two to replace the Daimler Dingo Scout Cars still in service.  Its official name is "Car, Scout, 4x4, Liaison (Ferret)". Like the Dingo, the Ferrets were designed to take on the liaison and reconnaissance roles for the British Armed Forces. Thusly, the initial Ferret Series consisted of the Mark 1 and the Mark 2 Variants.  However, over its long career, the Ferret Series would eventually expand into five (5) "Marks" and over a dozen sub-variants. A fairly common occurrence was the conversion and re-conversion of the different marks of Ferrets to other variants and back.  One common change seen was the conversion of Mark 1 or Mark 1/1 vehicles to the Mark 2 or Mark 2/3 Ferrets by the addition or removal of the turret assembly.  In a few cases, these conversions were done in the field; And in at least one case, a Mark 1/1 was converted to the Mark 2/3 standard by the fitting of a turret, but using a locally constructed superstructure.

The Mark 1 and Mark 2 series vehicles were to be replaced by the CVR(W) Fox Armored Car and Vixen Liaison Vehicle starting during the 1970's.  However, that was not the case as only a relatively small number of Foxes were built and the Vixen was cancelled in

Notable Mark 1 Variants

Mark 1: The sub-variant was the earliest produced in this series and the base for all subsequent sub-variants covered on this page.

Mark 1/1: This sub-variant was the one of the most common of all Ferrets produced.  It was improved from the Mark 1 and most notably, was fitted with additional armor during production. The new armor protection consisted of increases to the side plates (from 6, 8 or 10mm to 12 or 16mm), rear panel (from 6 or 8mm to 12mm), hull floor (from 6 to 10mm), and engine floor (from 4 to 6mm).

FV 704 Mark 1/2: This sub-variant was fitted with a small, flat-faced superstructure
to better protect the vehicle commander.  An armored roof was also provided for the same aim.


Mark 1/3 (AKA: Mark 1/1- Floating):  A few separate attempts were made to fit Mark 1/1 vehicles with different types of flotation devices, some performing better than others.  Although none were adopted and no official designation(s) were assigned to any of them, unofficially the vehicles were sometimes referred to as Mark 1/1 (Floating) or Mark 1/3.  One design of note was VERY similar to the subsequent Mark 3 "Big Wheel" Ferret and is commonly confused with it.
Data Sheet Available: None Available

Photos

Reference Source/Provider
    Ferret Scout Car Series Instructional Hull & 3D Electrical Diagram (Driver and Maintenance School - Bovington Camp: Circa 1994) Clive Elliott - Editor of The Shorland Site
Ferret Series Scout Car Instructional Hull/Interior Photos (The Tank Museum - Bovington, UK) Keith Paget - Northampton, UK
Ferret Series Scout Car Instructional Hull Photos (The Tank Museum - Bovington, UK) Dennis Trowbridge - Bristol, UK

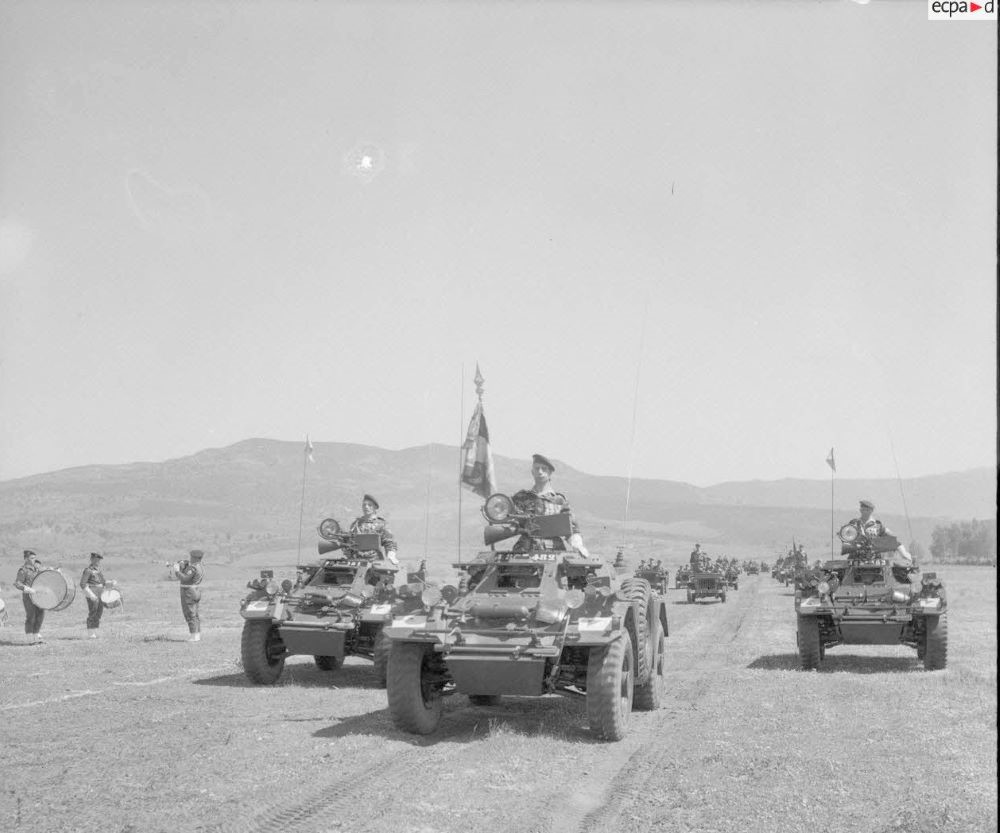

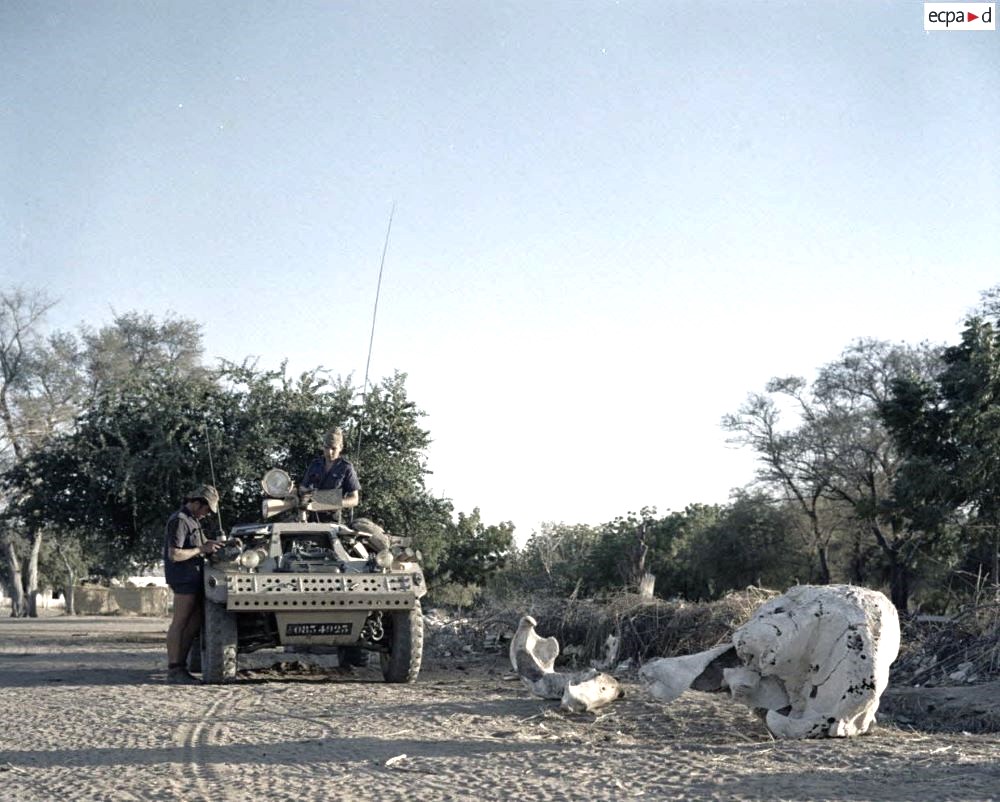

    Ferret Mark 1 Scout Car Photos British Ministry of Defence
Ferret Mark 1 Scout Car Photos Peter Brown - Wimborne, Dorset, England
Ferret Mark 1 Scout Car Photos (Russell Military Museum - Russell, Illinois USA) Patrick Keenan - Editor
  Ferret Mark 1 Scout Car - BAOR 1980: Command Troop 3RTR (Utilized as a Umpire's radio rebroadcast vehicle during a field exercise) Lt. Col. Dick Taylor (RTR) - Blandford Forum, Dorset, UK
United Nations Ferret Mark 1 Scout Car Photos Patrick Keenan

Ferret Mark 1/1 Scout Car Photos Patrick Keenan
  Ferret Mark 1/1 Scout Car Photo (Converted from Mark 2/3 based upon Registration Number) Keith Paget

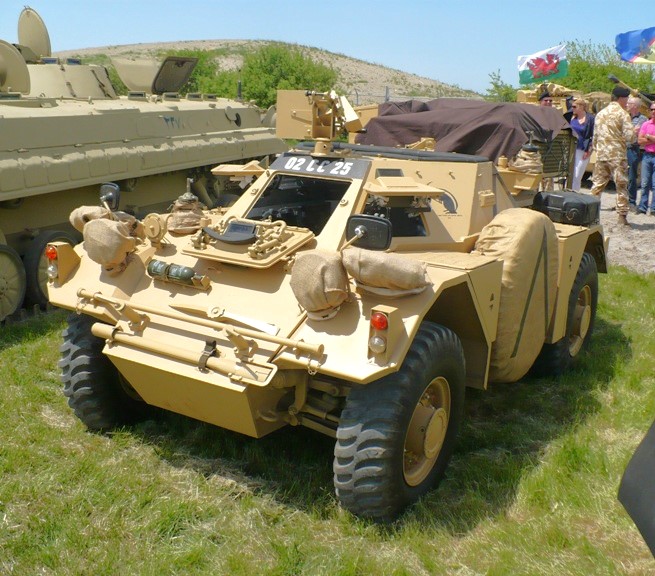

  Ferret Mark 1/1 Scout Car Photo (Military Vehicle Show - Kemble, UK 2005) Dennis Trowbridge
  Ferret Mark 1/1 Scout Car Photo War Office Reproduction Service via the David Haugh Collection

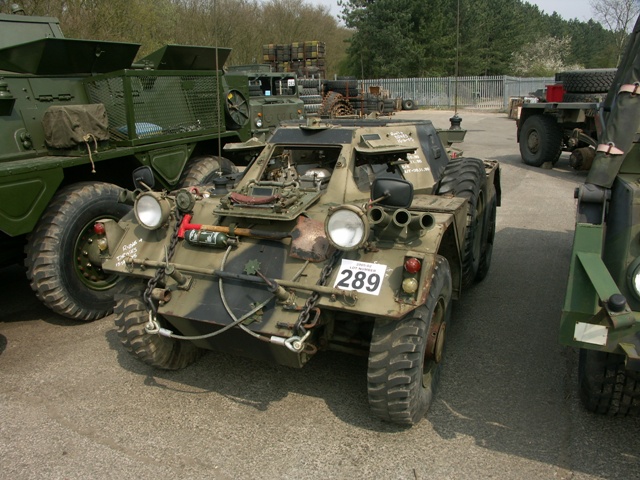

  Ferret Mark 1/1 Scout Car Photo Ian Young - Great Britain

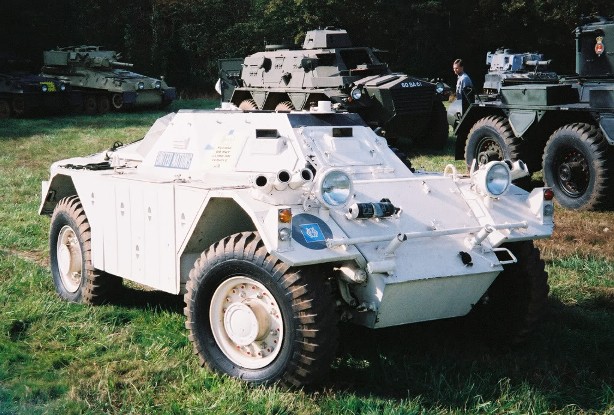

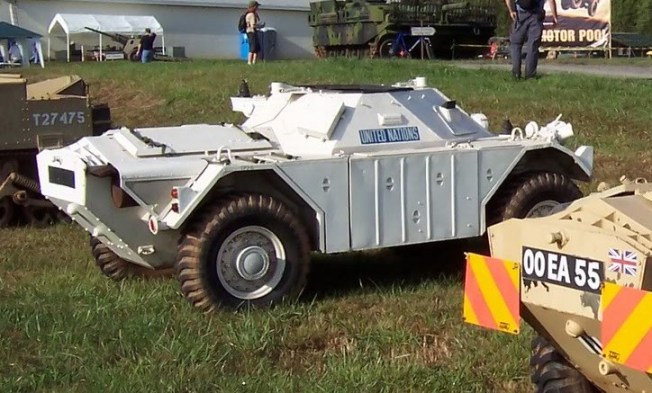

  United Nations Ferret Mark 1/1 Scout Car Photos Neil Baumgardner - Arlington, Virginia USA

Ferret Mark 1/2 Scout Car Photos Major (Retired) Don Allen - Orleans, Ontario Canada
  Ferret Mark 1/2 Scout Car Photos Neil Baumgardner - Arlington, Virginia USA
Ferret Mark 1/2 Scout Car Photos Ron Bollen - Belgium
Ferret Mark 1/2 Scout Car Photos The David Haugh Collection
  Ferret Mark 1/2 Scout Car Photo (Soltau, Germany - 1984) Murdo - Scotland
Ferret Mark 1/2 Scout Car Photos Keith Paget

  Ferret Mark 1/1 with Floatation Device Fitted (Sometimes referred to as a Mark 1/3) The David Haugh Collection
